Effectively remove troublesome ceramic Tie Bar corners with the Manix FP-TBC tie bar removal tool and accurately determine standoff height with the Manix M891 Measuring tool. These useful tools assist operators before any flat pack cutting and forming occurs. Manufactured by skilled toolmakers, these two assembly aids eliminates costly flat pack component damage and waste.
FP-TBC TIE BAR REMOVAL TOOL
OVERVIEW
Safely remove tie bar corners from four sided flat packs with the FP-TBC. Ceramic Tie bars snap cleanly while ensuring no damage occurs to the component leads or to the component body. The tool is easy to use and setup is made in a matter of a few short minutes.
PRODUCT FEATURES
Spring loaded clamps adjust for Tie Bar thickness and eliminates damage to the flat pack leads or flatpack body.
Fully adjustable for body size and Tie Bar length.
Snap-off ceramic Tie Bars with a single actuation.
Processes one corner (two sides) at a time.
SPECIFICATIONS
Activation: Hand Lever
Size: 7”W X 8”L X 15”H
178mm X 203mm X 381mm
Weight: 11 lbs, 5 kgs.
Mounting Holes: 4.25”W X 6”L
108mm X 152mm

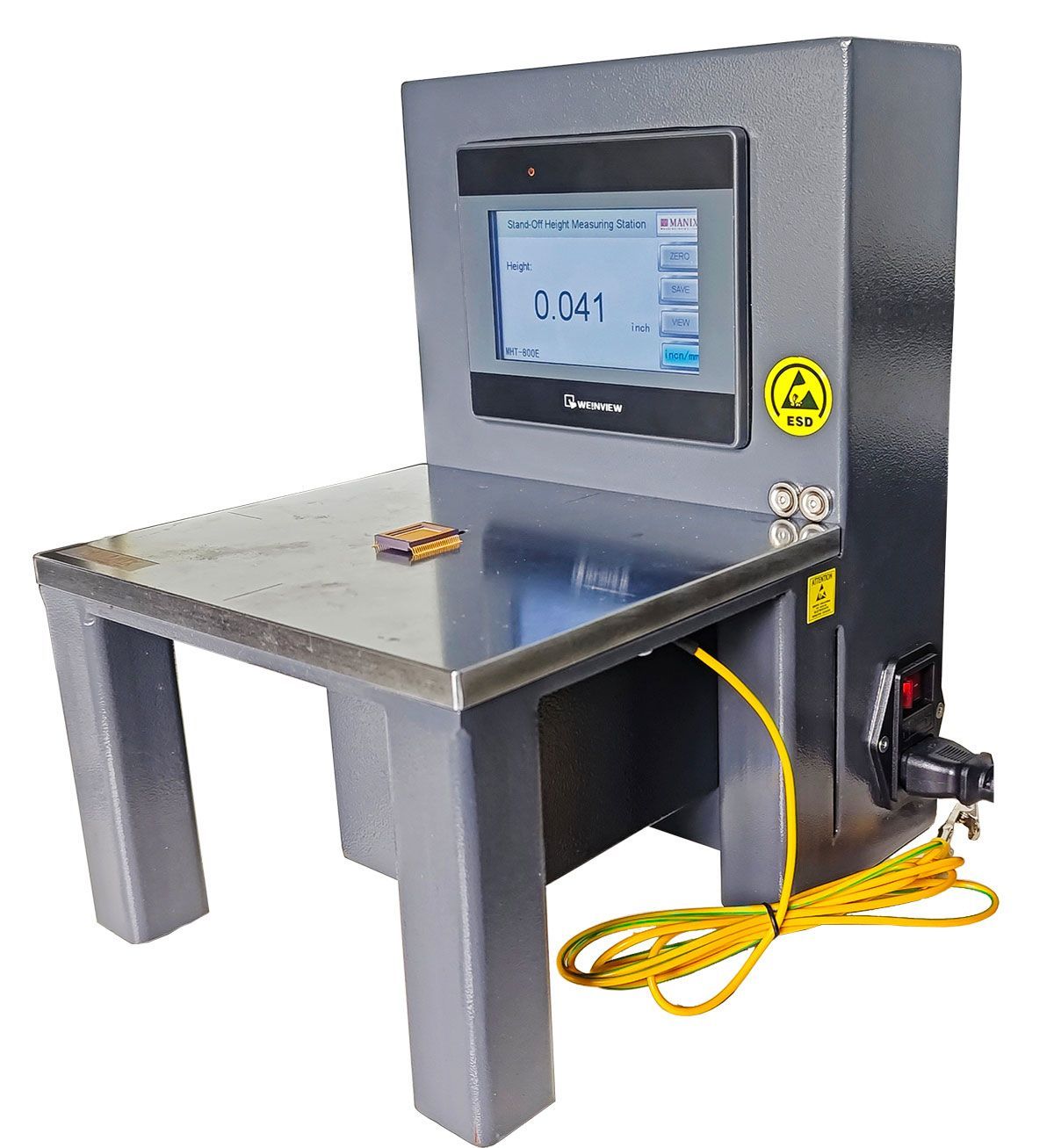

MHT-800E
OVERVIEW
The MHT-800E is a high precision laser measuring system
that is designed to measure the stand-off height of formed flat
packs, and also to measure the lead egress point from the bottom
of the component lead to the bottom of the body.
PRODUCT FEATURES
Verify stand-off heights after cutting and forming.
Measure lead egress (at lead exit, distance from bottom of
component lead to bottom of component body).
Add lead egress to stand-off height for quick die adjustment
set-up.
Library storage capacity for up to 10 sets of data measurements.
Digital display in millimeters or inches.
Large touchscreen for ease of use and viewing.
Laser precise provides real-time measurements.
Anti-static paint with anti-static grounding for ESD safety.

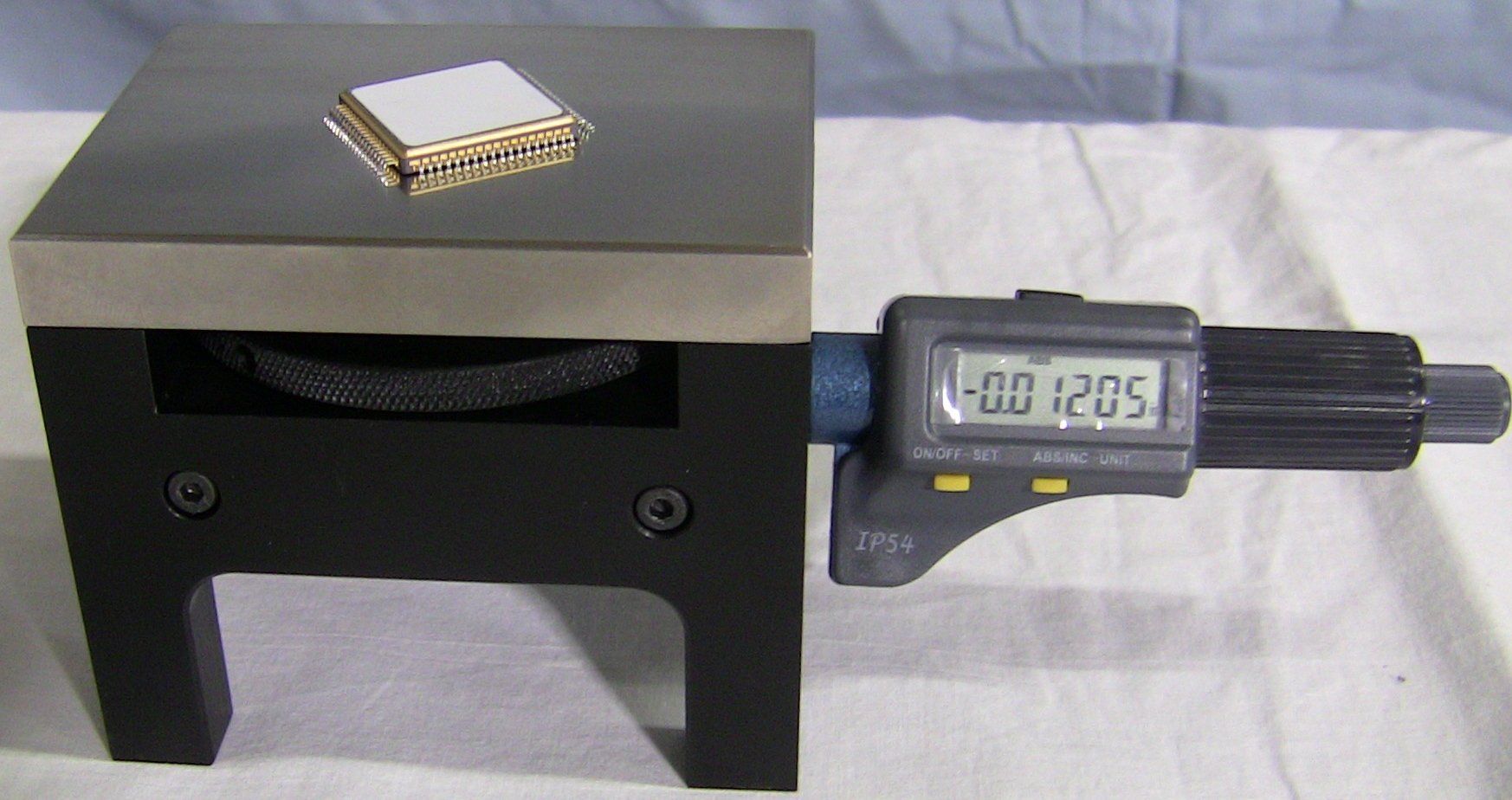

M891 FLATPACK MEASURING TOOL
OVERVIEW
The M891 measuring tool is designed to measure the stand-off height of formed flat packs, and also measures the distance from the bottom of the component lead to the bottom of the body. This is extremely useful in setting the stand-off height when using Manix adjustable flat pack tooling.
PRODUCT FEATURES
Verify stand-off heights after cutting and forming.
Measure lead egress (at lead exit, distance from bottom of component lead to bottom of component body).
Add lead egress to stand-off height for quick die set-up,
Digital micrometer displays in inches or mm.
Large thumbwheel makes for easy measurement determination.
SPECIFICATIONS
Size: 8.5”L X 3”W X 3.5”H
216mm X 76mm X 89mm
Weight: 6 lbs., 2.7 kgs.
Micrometer: Battery operated, digital
