AUTOMATIC AXIAL LEAD FORMING AND CUTTING
Cut and form, form only, and/or cut only all styles of axial components with the Manix range of automatic axial lead forming systems. Whether your components are on tape or loose, Manix has a machine to fit your production rate and your budget. Choose from the do all CF-2000, or the workhorse CF Axial, or even the economical and world best seller Cut/Bend system.

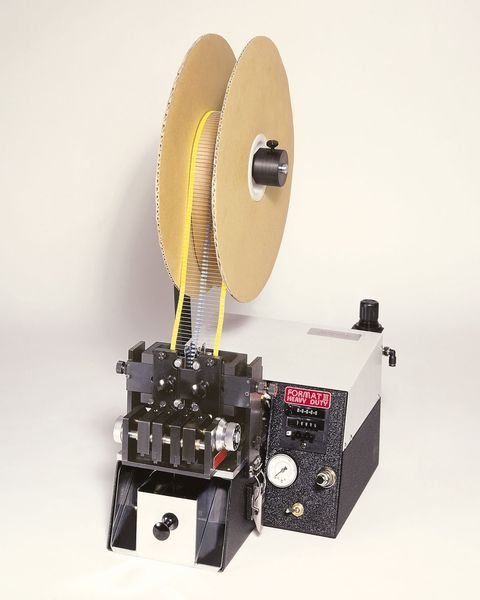

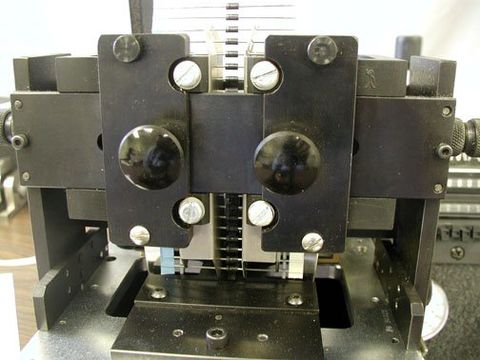

CF Series Automatic Axial Lead Former
OVERVIEW
Cut and form axial components at speeds up to 20,000pph with the CF axial lead former from Manix. Process loose or taped components depending on which feeder you choose. Form to 90 degrees, vertical, stand-off, snap-in, and even cut-only, depending on the die you choose. Building block in design, you choose only what you need to process your axial component lead forming needs.
PRODUCT FEATURES
Cut and form axial components to Mil-Spec quality.
Choose from a variety of formers to suit your requirements.
Fully pneumatic linear system ensures perfect repeatability.
Choose a base for leads up to 0.032” (0.8mm) or up to 0.070” (1.78mm),
System includes a foot pedal for manual operation.
Purchase with or without a machine stroke counter
SPECIFICATIONS
Activation: Automatic or foot pedal, Pneumatic.
Rate of Forming: Up to 20,000 parts per hour.
Dimensions: 12”W x 20”D x 8”H
305mm x 508mm x 203mm
Weight: 45 lbs., 20 Kgs.
Air Required: 80 psi.
Types of Components: All Axial varieties.

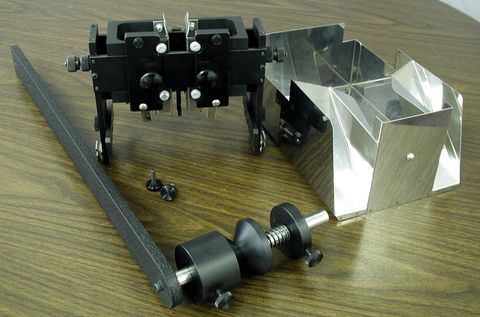

Cut/Bend Axial Lead Former-# Selling Machine in Industry
OVERVIEW
Cut and form axial components at speeds up to 25,000pph with the famous Cut/Bend axial lead forming system. Process loose or taped components depending on which feeder you choose. Form to 90 degrees, vertical, and even cut-only, depending on the system you choose. This machine has a reputation for reliable, economical performance in thousands of PCB assembly factories worldwide. Simply turn the handle and parts are cut and formed and deposited into a collection bin.
PRODUCT FEATURES
Cut and form or cut only axial components on tape or loose.
Choose from a variety of formers to suit your requirements.
Can be adjusted easily for varying body sizes, form dimensions, and cut length.
An included adjustment tool eases set-up.
Options include a reel holder, loose feeder, and component counter.
Cut/Bend mounts on any tabletop with the included C Clamp.
SPECIFICATIONS
Activation: Hand crank.
Rate of Forming: Up to 25,000 parts per hour.
Types of Components: All Axial varieties.
Systems Available: Choose from light duty, heavy duty, cut-only, and vertical component processing.
Units Sold: More than 35,000 worldwide.
